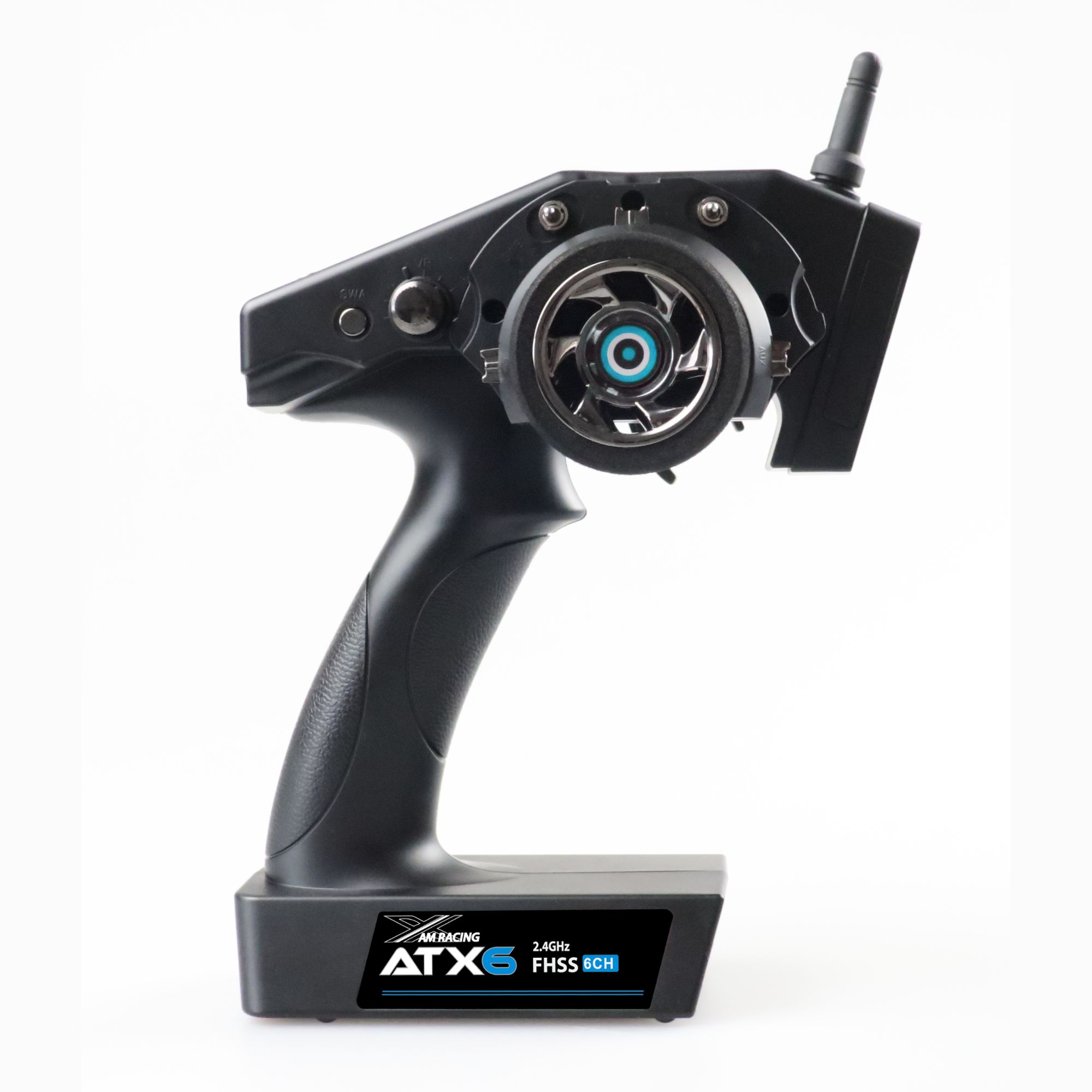

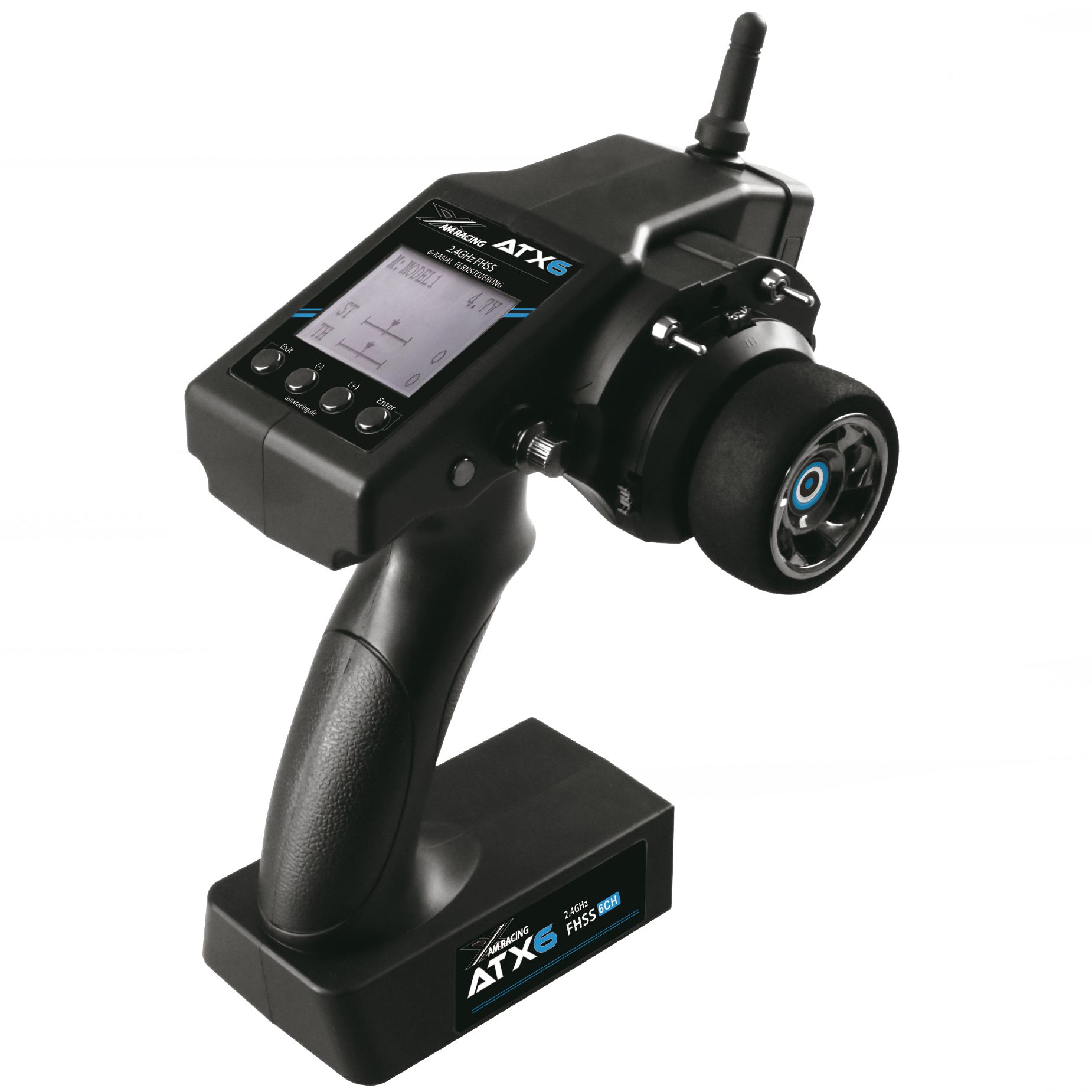

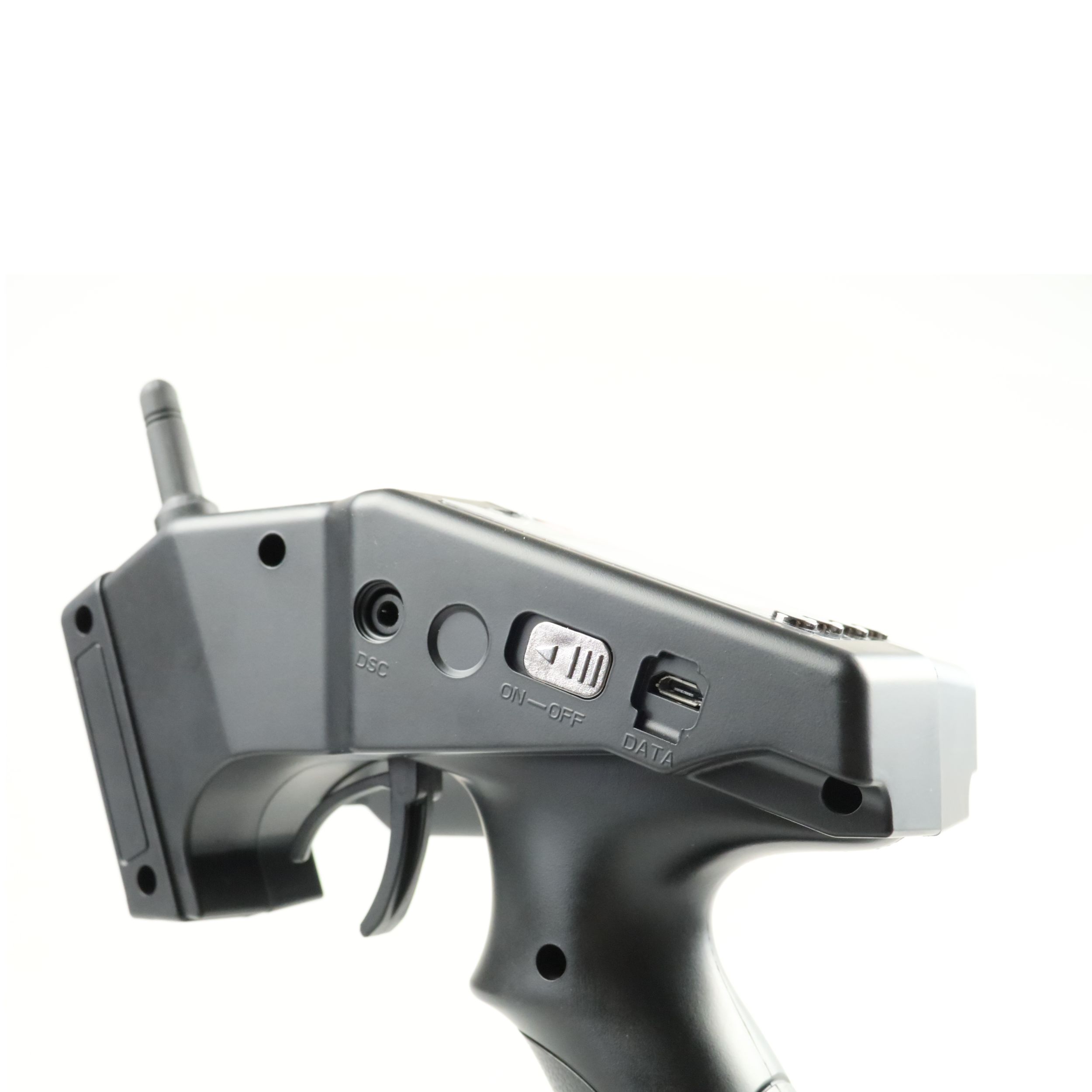

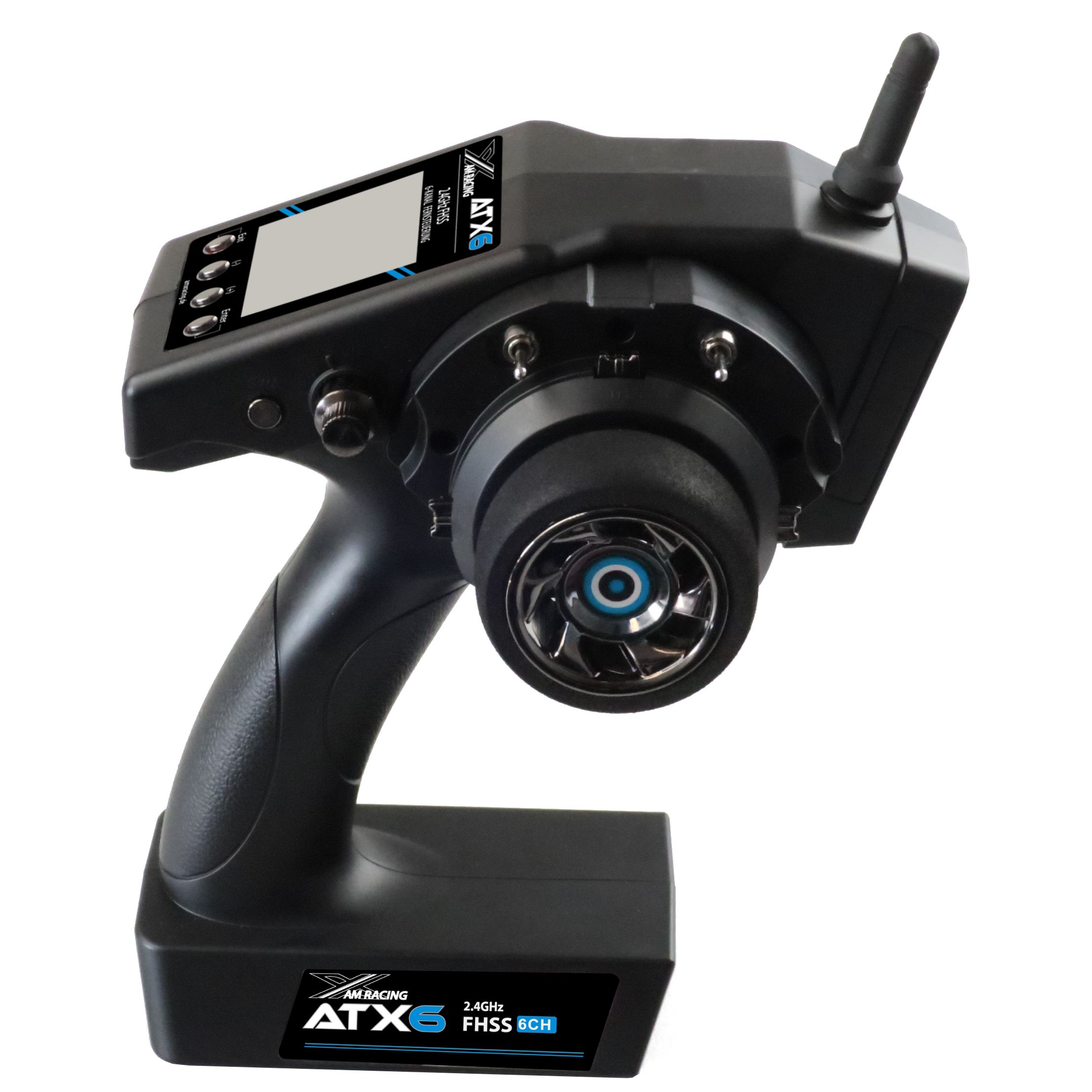

ATX6 6CH Transmitter 2,4GHz incl. Receiver

6 Channel FHSS Transmitter with 6 Channel with RX6FG Receiver with integrated FSS.

Specifications ATX6
Size: 213 x 117 x 115,5mm
Frequency: 2,4GHz ISM Band 2400MHz - 2483,5MHz
Channels: 6
Transmission speed: 12ms
Channel resolution: 4096 the regular Jitter is 0,5µs
Model: Cars and Boats
Spread Spectrum: FHSS 64 Channels Pseudo Random Frequency Sequence Hopping
Model Memory Storage: 10
Antenna length: 100mm
Control distance: 600m
LCD Screen: 128x64 Resolution LCD Backlight
Transmitter operating Voltage: 4,8 - 15,0V
Transmitter Batterie: 4AA 1,5V or 2-4S Lithium battery
Transmitter operating current: 80-120mA
RF-Power: < 20dbm
Low voltage alarm: lower than 4,6V, can be set when using 2-4S Lithium battery.
Receiver: RX6F, RX6FG

Specification Receiver RX6FG:
Size: 35x20x13mm
Channels: 6
Modulation mode: GFSK
Spread Spectrum: FHSS
Antenna length: 210mm
Control distance: more than 400m
Power supply: 4,8-15V. 4x AA batteries 1,5V or 2-4S Lithium battery
Frequency: 2,4GHz ISM Band (2400MHz ~ 2483,5) MHz
Channel resolution: 4096, regular jitter 0,5µs
Work current: 30mA
